Dragline Hose

Dragline Hose

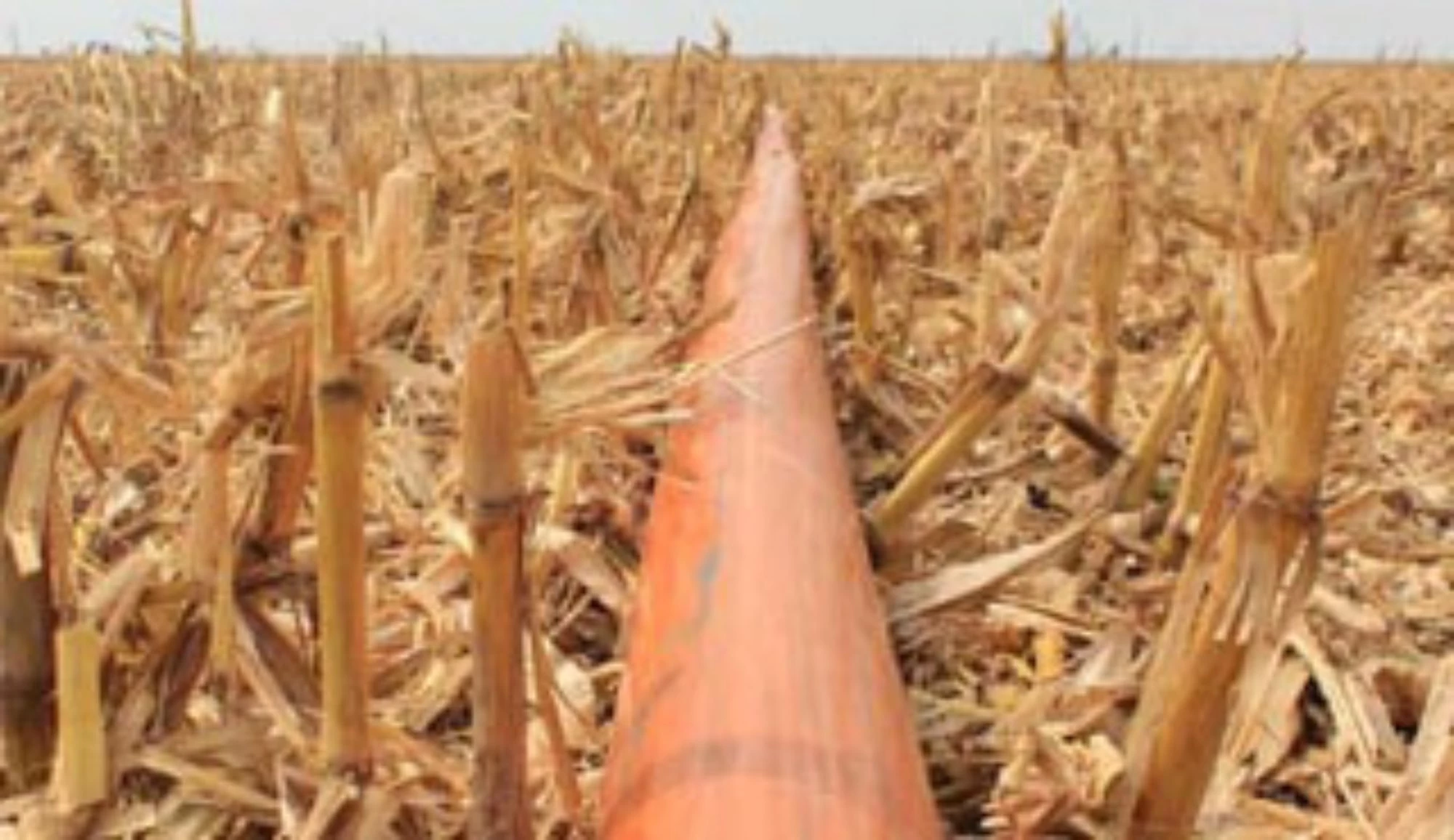

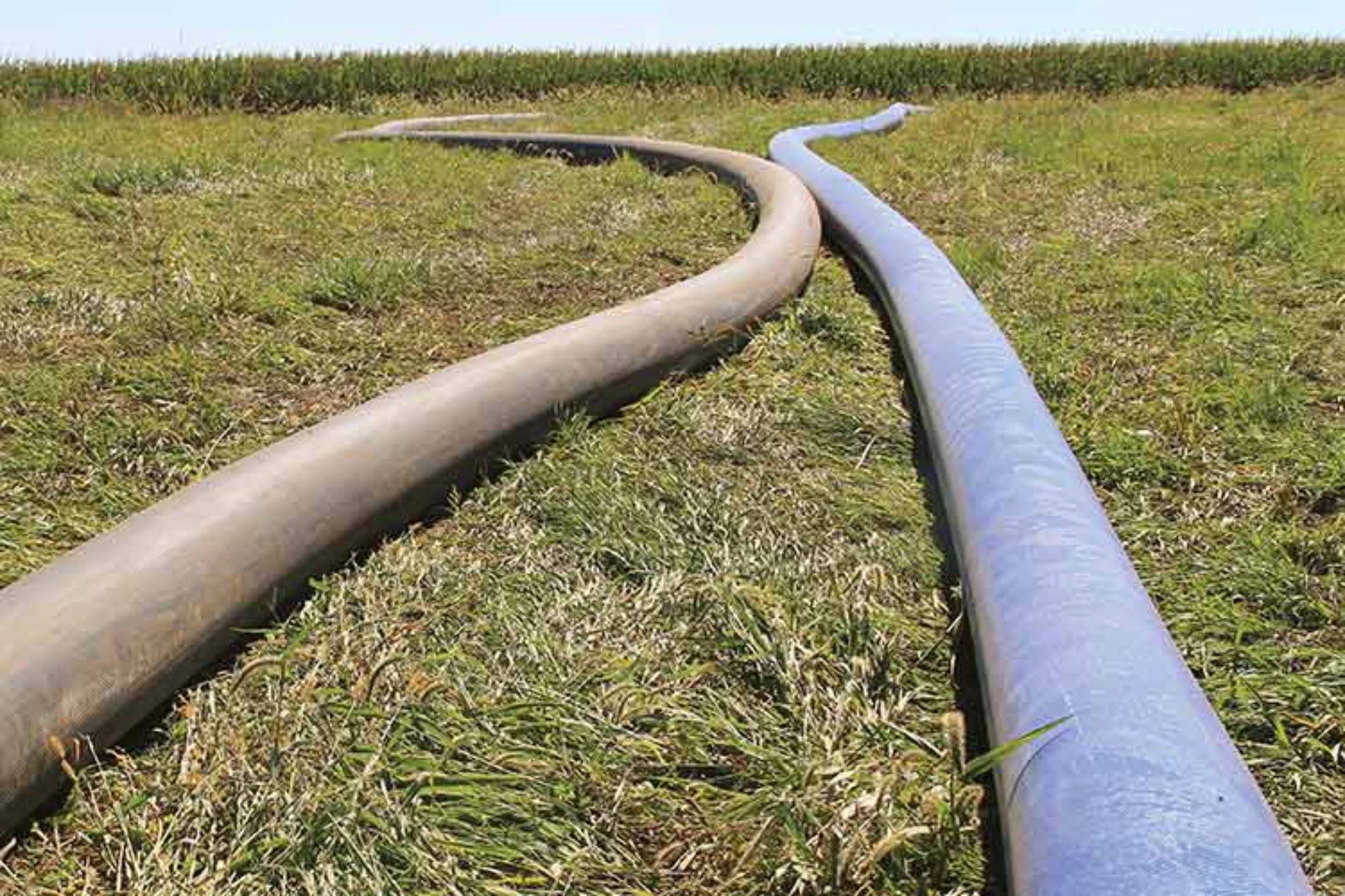

Drag Hose

Drag hose is an integral part of your drag line system. Mandals' Dragman series of high quality flexible layflat hoses are designed for the rigors of the job.

Mandals Dragman Extra

FEATURES
Designed for umbilical drag system used for distribution of slurryand manure in agricultural fields.
Engineered with extreme tensile strength and abrasion properties.
High tenacity filament polyester yarn.

Design
Covered and lined with Thermoplastic Polyurethane (TPU).
Extrusion through the Weave Technology - ensuring ultimate adhesion between TPU and the weave.
Heavily reinforced weave ensuring required longitudinal Tensile strength and Burst pressure.

Advantages
Ultimate tensile strength and adhesion level polymer to weave.
Enhanced abrasion resistance.
High diameter and extension stability.
Low kink radius.
High puncture resistance.
Temperature range -50ºC to +75ºC (pure water) (-58 ºF to +167 ºF).
Standard lengths depending on diameter.
Excellent UV and weathering resistance.

Size Options

Inner diameter: 5", 5-1/2", 6", 7", and 8".
Lengths: 660', 990', and 1,320'.
Subject to availability

Mandals Dragman Extra
Pressure:
217 psi
Burst: 435psi
Tensile Strength: 48,300 lbs.
Weight: 1.31 lbs./ft.

Mandals Dragman Extra
Pressure:
217 psi
Burst: 435psi
Tensile Strength: 56,400 lbs.
Weight: 1.44 lbs./ft.

Mandals Dragman Extra
Pressure:
217 psi
Burst: 435 psi
Tensile Strength: 60,400 lbs.
Weight: 1.54 lbs./ft.

Mandals Dragman Extra
Pressure:
217 psi
Burst: 435 psi
Tensile Strength: 81,400 lbs.
Weight: 1.84 lbs./ft.

Mandals Dragman Extra
Pressure:
217 psi
Burst: 435 psi
Tensile Strength: 102,800 lbs.
Weight: 2.21 lbs./ft.
