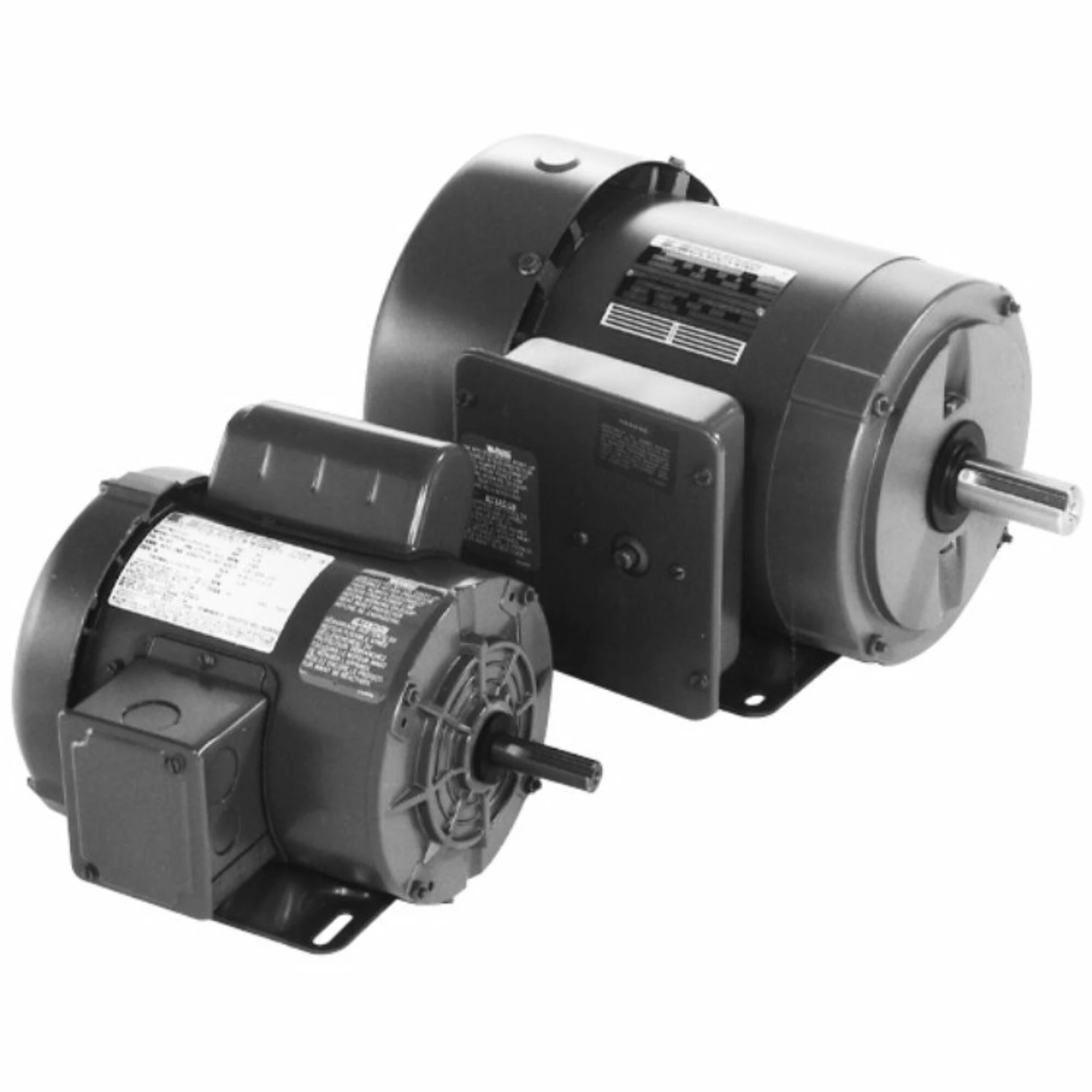

Farm Duty Motors


We offer a full line of single and three phase Farm Duty motors for use in a wide variety of agricultural and industrial applications. These belt driven motors can be used for sanders, pulleys, and assembly lines, as well as fans and air pumps.

Our quality Farm Duty motors are reliable so you won’t be left looking for power. We also have the capability of building custom designs for any specialized application you may have.

Contact our shop office for more information (315) 224-0444

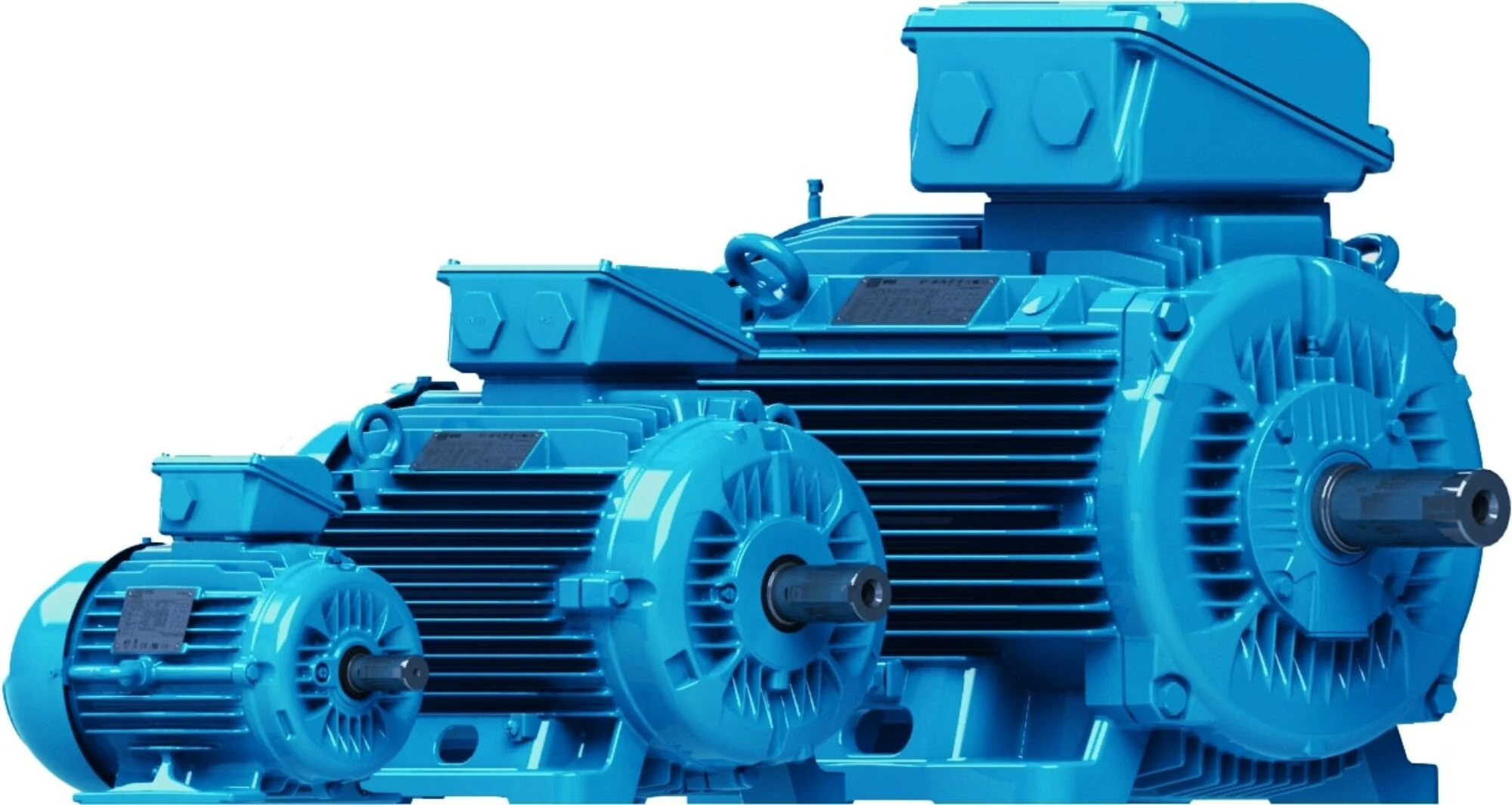

WEG W22


High performance with maximum energy efficiency, this is the goal of the new WEG electric motor. High efficiency and Low cost of Ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to maximize performance and energy savings. WEG’s W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise, extending the life of the motor.

FEATURES

• 1 – 600 Horsepower motors and above
• 50/60 Hz rated
• 1.25 service factor in all ratings
• Optimized ventilation system
• Solid base for reduced vibration levels
• Frames 447T
• NPT Threaded terminal box
• Cast Iron Frames
• Gasketed conduit box
• Stainless Steel nameplate

New cooling system

Redesigned to provide improved air flow through all motor frames keeping low operational temperatures and assuring reliability and extended lifetime. The aerodynamic design of the fan cover increases effective airflow, thus minimizing losses due to the recirculation of air between fan and fan cover. The fan was designed to provide strength and reduced noise level. Motor terminal box and eyebolts were repositioned on larger frames to allow better airflow.

Terminal box

Increased internal space making connections more accessible to the user resulting in an easier cable handling and connection. Terminal box can be mounted on top, left or right site of the motor using the same frame on the 447T and larger motors. Top mounting is optional on smaller frames.

Frame

Motor feet are solid providing a more resistant structure against vibration. The frame design has points that can be used as provisions for vibration sensors as a standard feature.

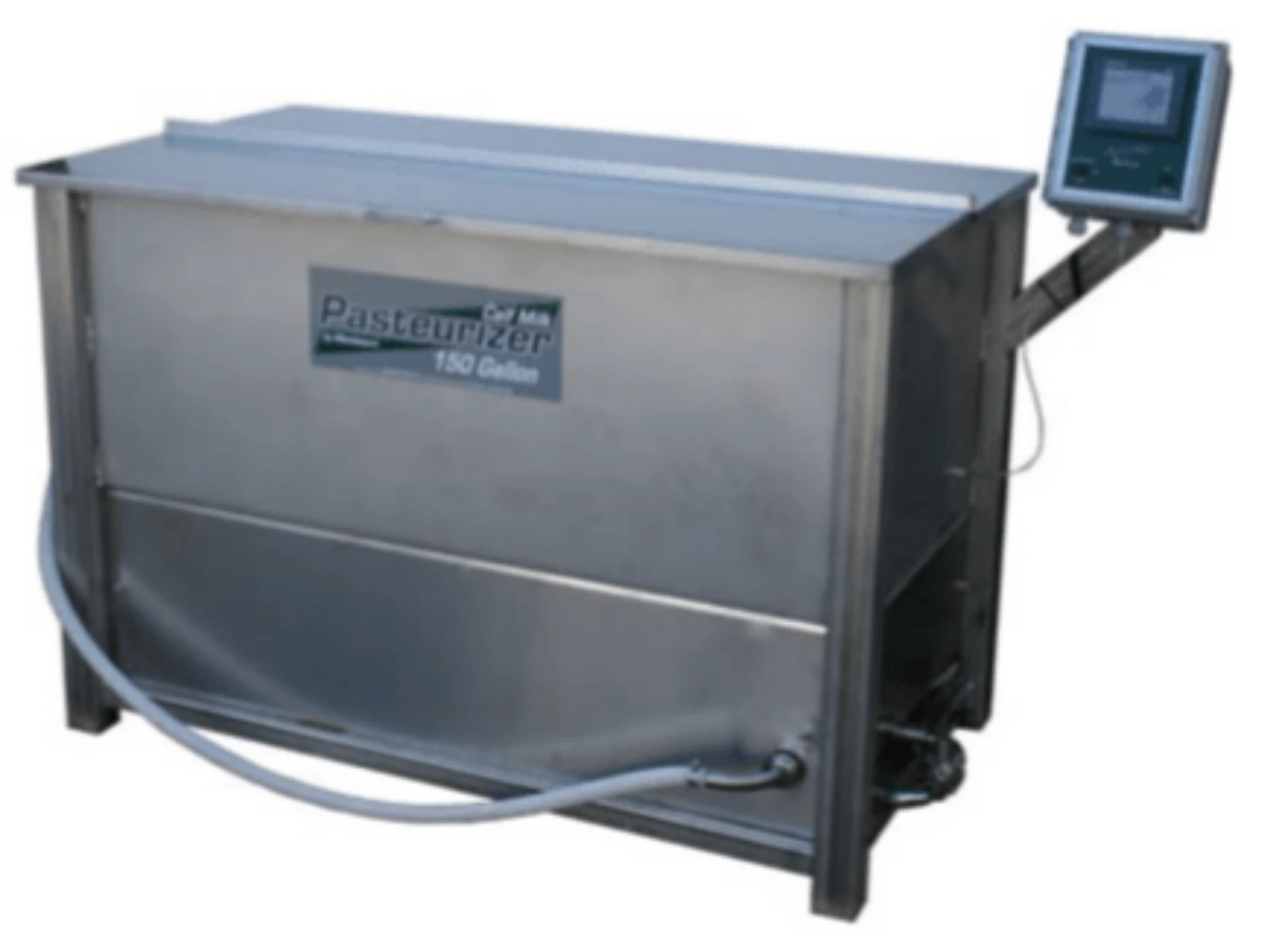

120/150/200/250 Gallon Westwaard Calf Milk Pasteurizer


• Pump Agitation and Dispense System
• Automated Pasteurization Cycles
• Re-Heat & Pre-Cool Options Standard
• Automated C.I.P. System
• Peristaltic Chemical Pump
• Large PLC Screen Provides Information Throughout Cycles
• Requires Integration with Hot Water Heater for Heating Cycles
• 20 Amp 240 VAC 1 Phase 4-Wire

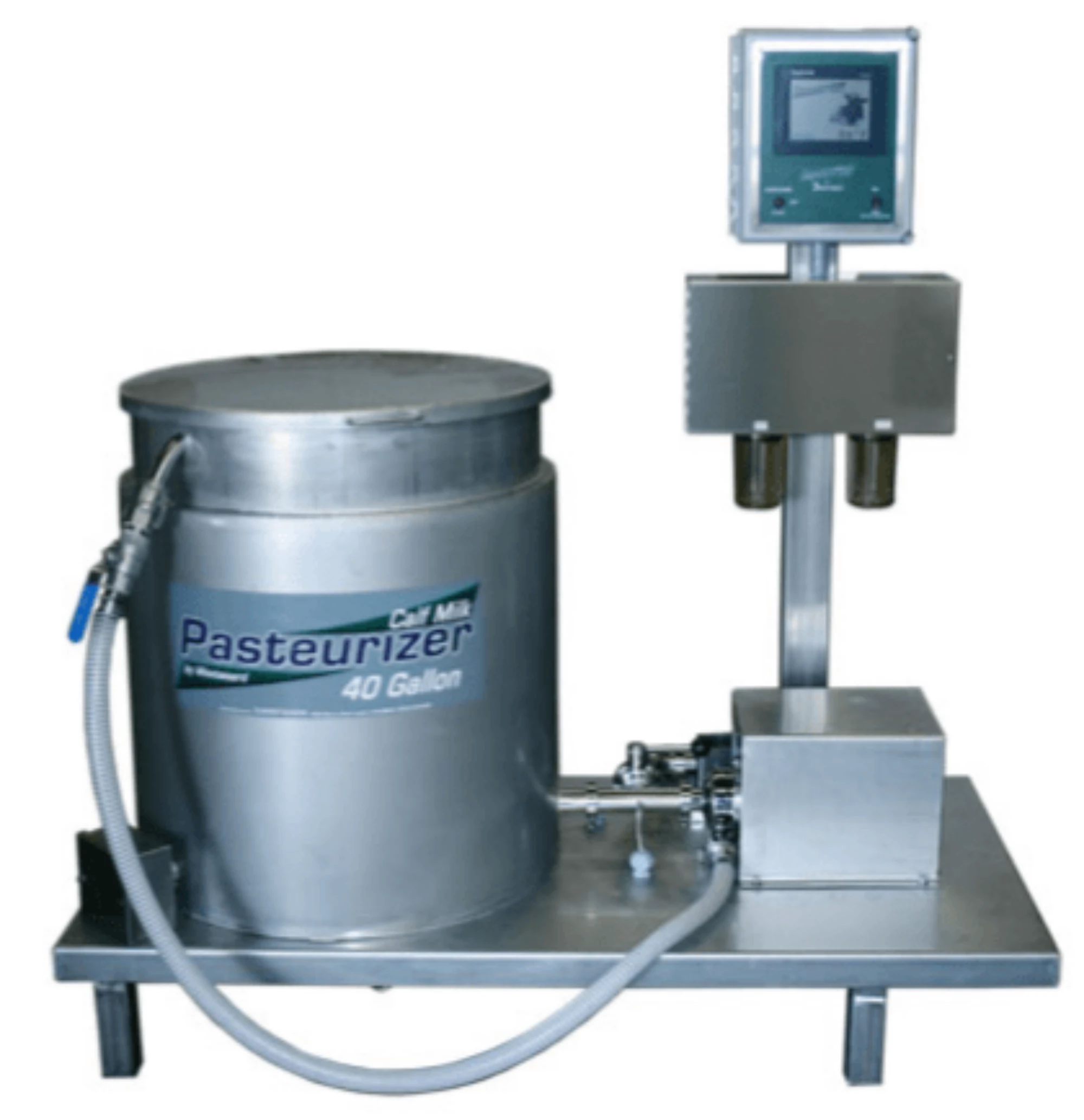

40/60/90 Gallon Westwaard Calf Milk Pasteurizer


• Pump Agitation and Dispense System
• Automated Pasteurization Cycles
• Re-Heat & Pre-Cool Options Standard
• Programs for Colostrum Pasteurization and Colostrum Thaw for Frozen Bags
• Automatic C.I.P. System
• Optional Peristaltic Chemical Pump
• Large PLC Screen Provides Information Throughout Cycles
• Electric Heating
• 40 Gallon – 40 Amp 240 VAC 1 Phase 4-Wire
• 60 Gallon – 50 Amp 240 VAC 1 Phase 4-Wire
• 90 Gallon – 70 Amp 240 VAC 1 Phase 4-Wire

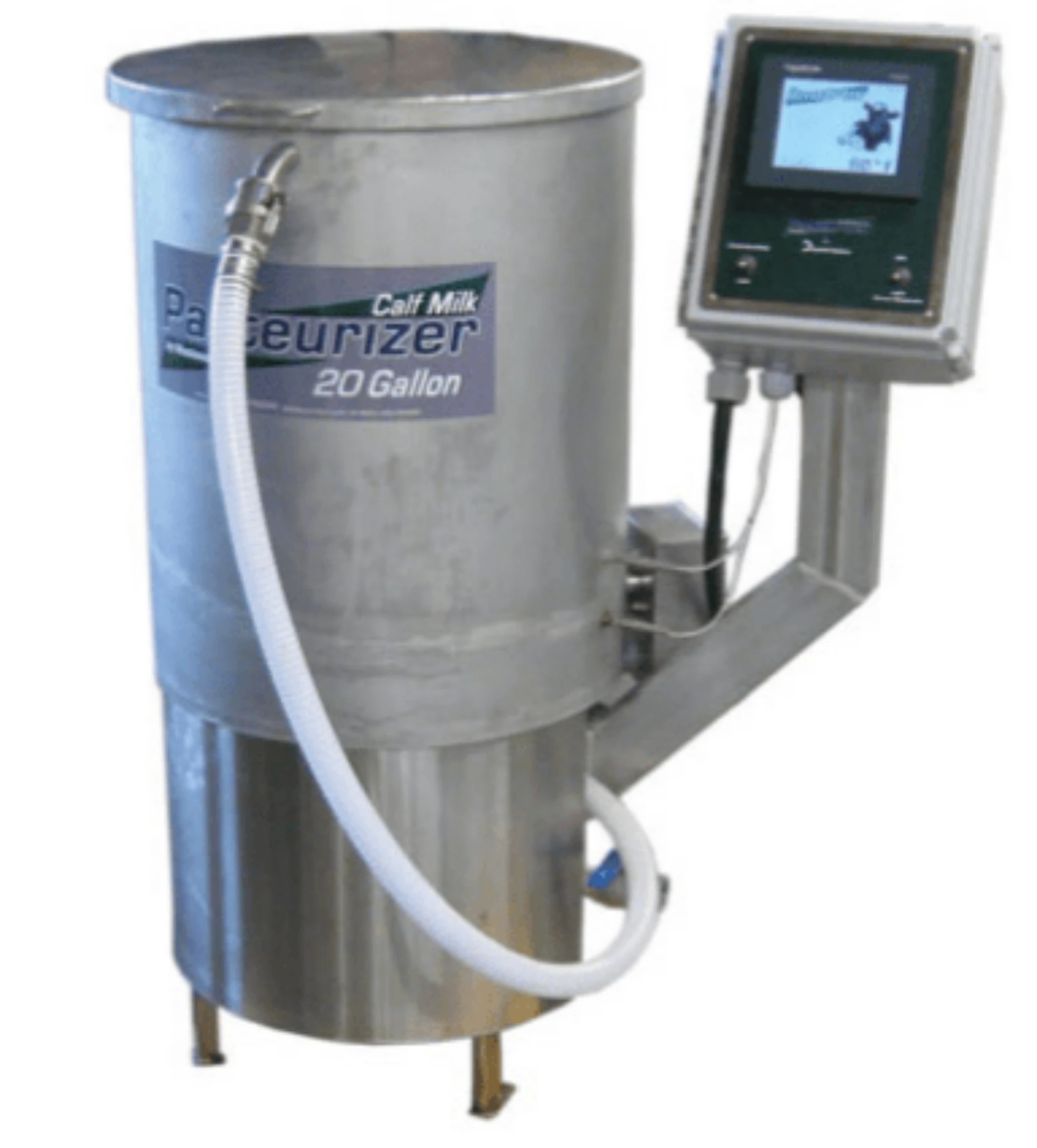

20 Gallon Westwaard Calf Milk Pasteurizer


Built with the same expertise and quality as our larger pasteurizers, this pasteurizer also includes our fully automated PLC control and heavy-duty stainless steel construction. Our 20-gallon pasteurizer is a great size to be used as a colostrum pasteurizer as well!

• Pump Agitation and Dispense System
• Automated Pasteurization Cycles
• Re-heat & Pre-cool Options Standard
• Programs for Colostrum Pasteurization and Colostrum Thaw for Frozen Bags
• Manual Wash
• Large PLC Screen Provides Information Throughout Cycles
• Electric Heating
• 30 Amp 240 VAC 1 Phase 4-Wire
