Doda

- Heavy Duty oil cooled gearbox with 2.73 gear ratio (2730 impeller RPM)
- Suction cone has built in oil reservoir with filter to recirculate oil through gearbox
- 6" or 8" suction cone with internal check valve
- Pump comes standard with belt driven power primer, HD large 1000 spline PTO shaft, and 2-wheel trailer.
- Tungsten-Carbide mechanical seal system

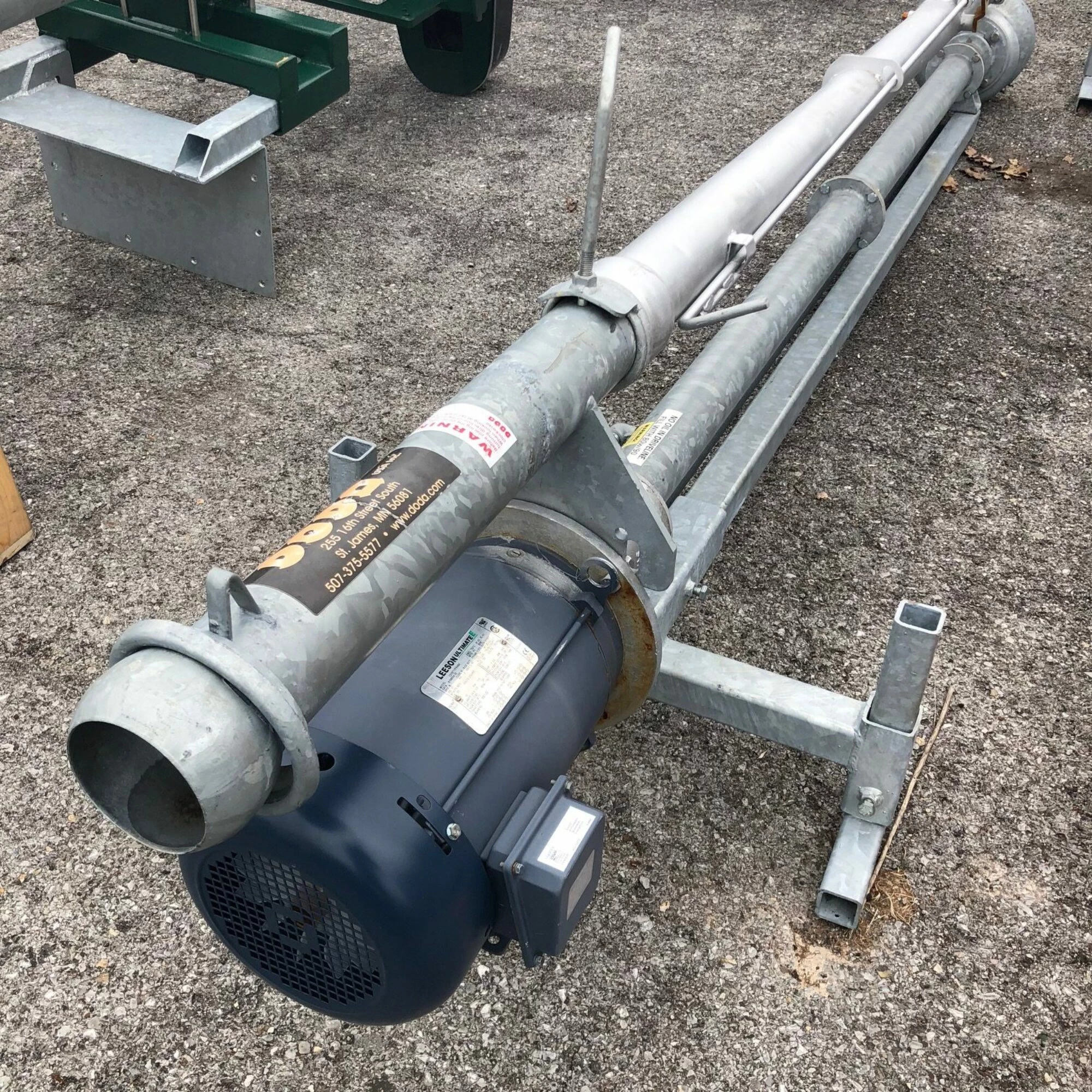

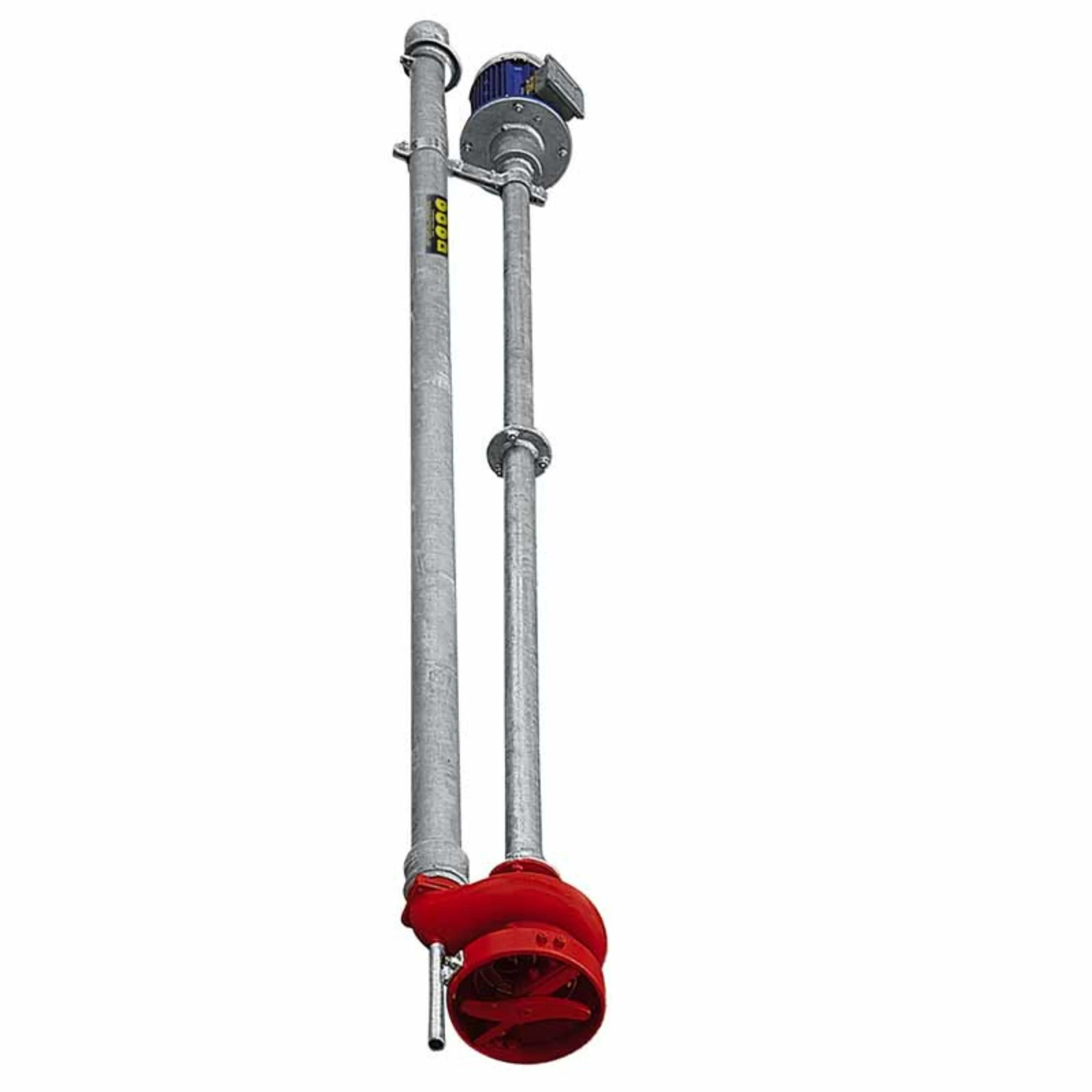

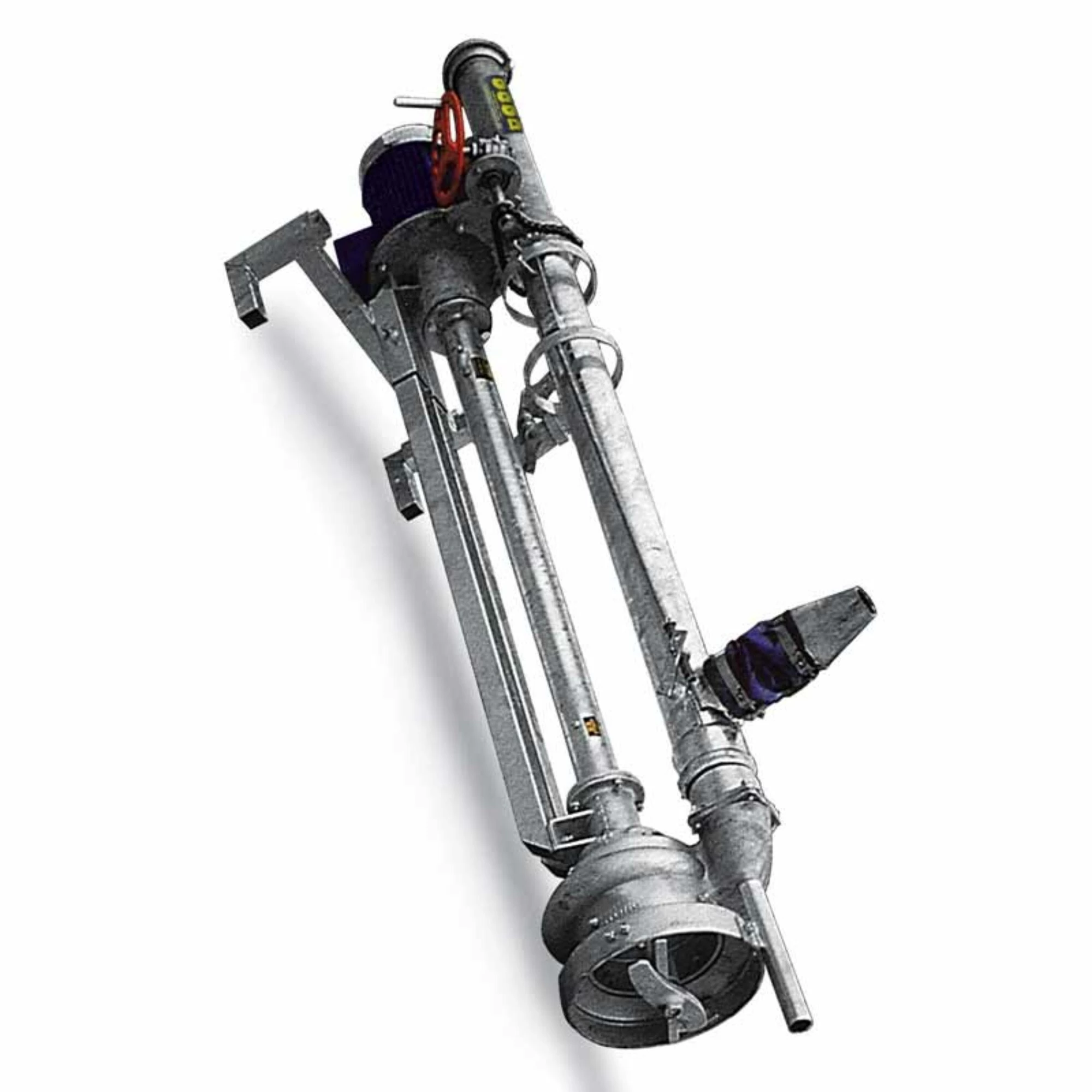

The ME electric motor pumps are ideal for hog, dairy, or beef reception pits, water, sewage, syrup – the list goes on! Pumps can be used to agitate, transfer or to fill hauling units. Parts in stock in our USA facility to build pumps in various lengths from 4’-20’, additional lengths available upon request. The manure pumps from our Auburn company can be run with motors from 5hp – 50hp 3phase or single phase. c-face electric motors eliminate belt & pulley problems. Hot dipped galvanizing is standard – stainless steel components are available upon request.

Cast iron impeller housing with venturi design & adjustable pressure plate creates high pressure to move the slurry as far or fast as you need.

The patented manure chopping system available from our Auburn company can handle slurries with higher concentration of bedding & solids. Rotating cutter blade & counter blades are made of hardened steel alloy to chop harder & longer without needing to be replaced.

Agitation nozzle has a 320degree horizontal & 90degree vertical range of motion.

Pumps can be mounted & secured in several different ways with wall/floor mount bracket or on a 2 wheel trailer which allows easy movement between different pit access holes.

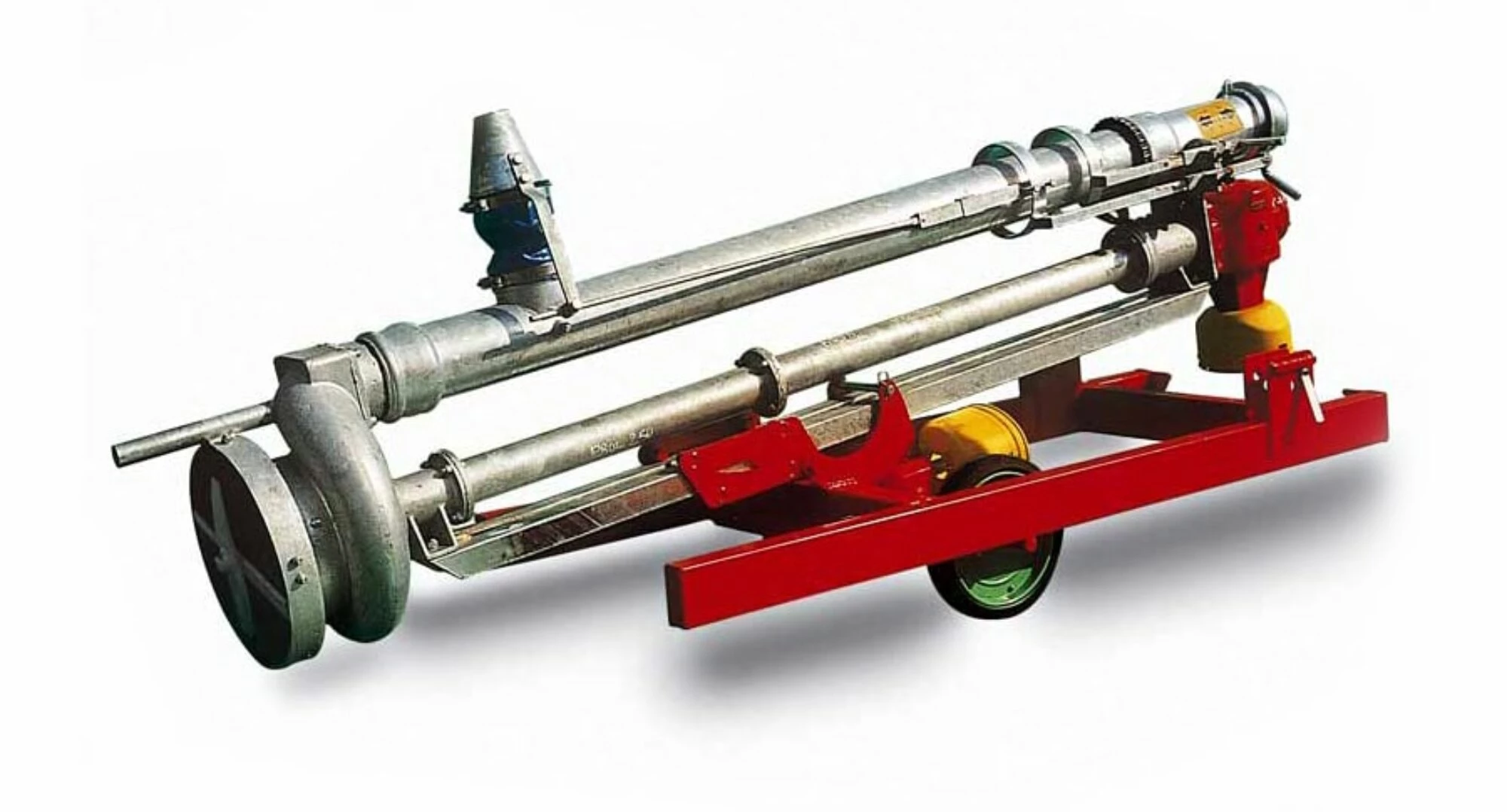

CFS in Auburn offers Super/PTO chopper pumps with dual chopping features that assure the waste will be properly chopped leading to fewer plug-ups in the field. Available in standard lengths of 6’, 8’, 10’, 12’ with additional lengths upon request. Can fit 540 or 100 RPM.

Pump housing with nodular cast iron impeller & venture design accelerate slurry movement, the patented chopping system handles slurry with larger concentrations of bedding & solids, chopping blades made of hardened steel alloy, nodular cast iron impeller & adjustable pressure plate creates high pressure that can power up to 12,000 cuts per minute.

• Discharge tube size’s come in 6” or 8”.
• SUPER Pumps can fit into pit holes as small as 2’ x 2’
• Carriage with hydraulic motor & stainless steel cable on a winch and simple 2 point hook up makes transfer from pit to pit very quick & easy.

The AFI pump is a high-pressure chopper pump available from CFS in Auburn that can be mounted on a tractor or connected to a direct power source. Vanadium and manganese alloy chopper blades chop the slurry prior to pumping, allowing for fuel-efficient, block free operation. An oil cooling system keeps the gearbox cool even in heavy and prolonged conditions resulting in the most efficient, low maintenance agricultural pressure pump on the market.

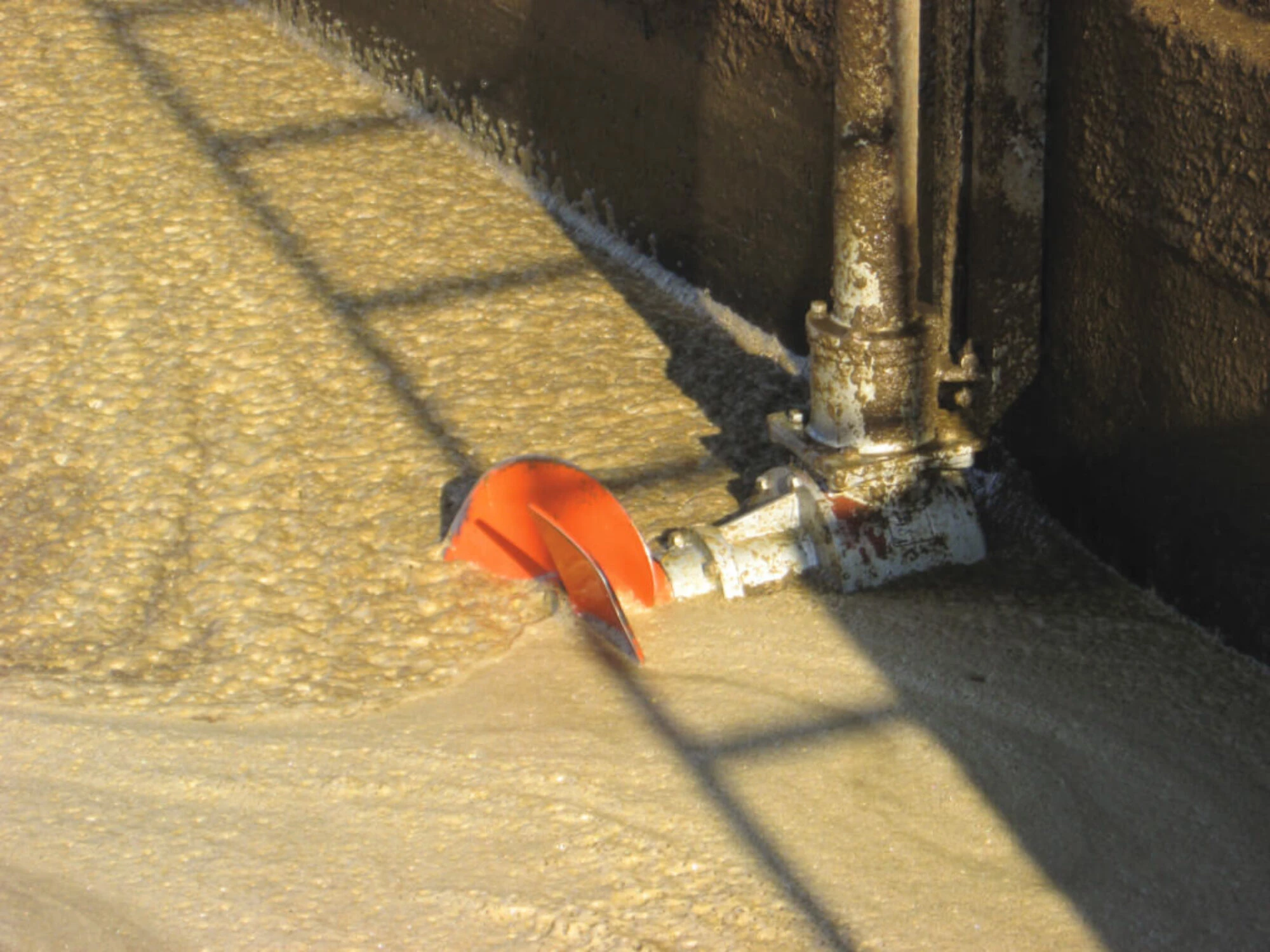

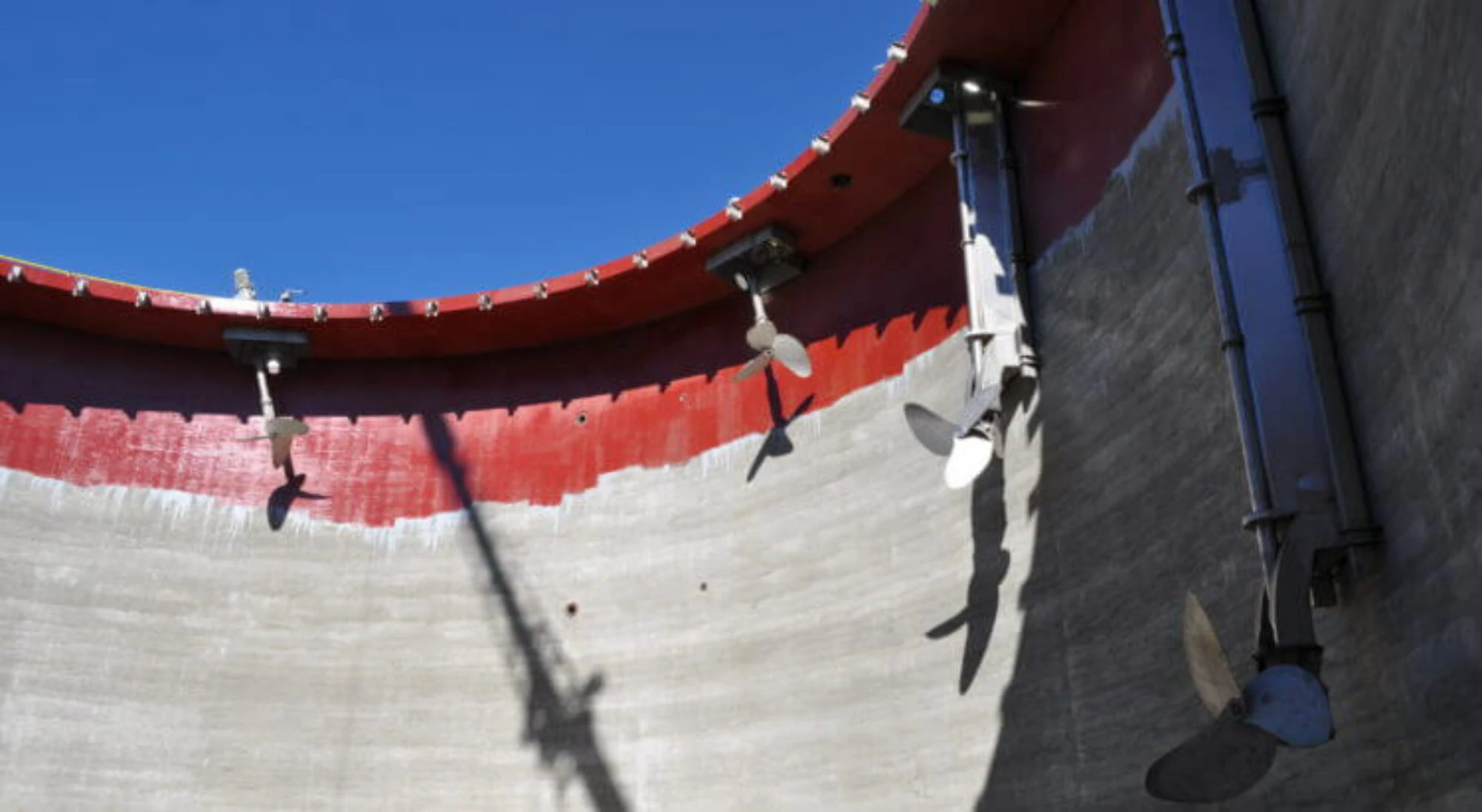

Doda manufactures a variety of propeller mixers for the most challenging applications. The unique self-cleaning propeller on the manure agitators offered by CFS in Auburn is designed for where the treated mass must be kept in a homogeneous state without dispersing the characteristic gasses used for biogas.

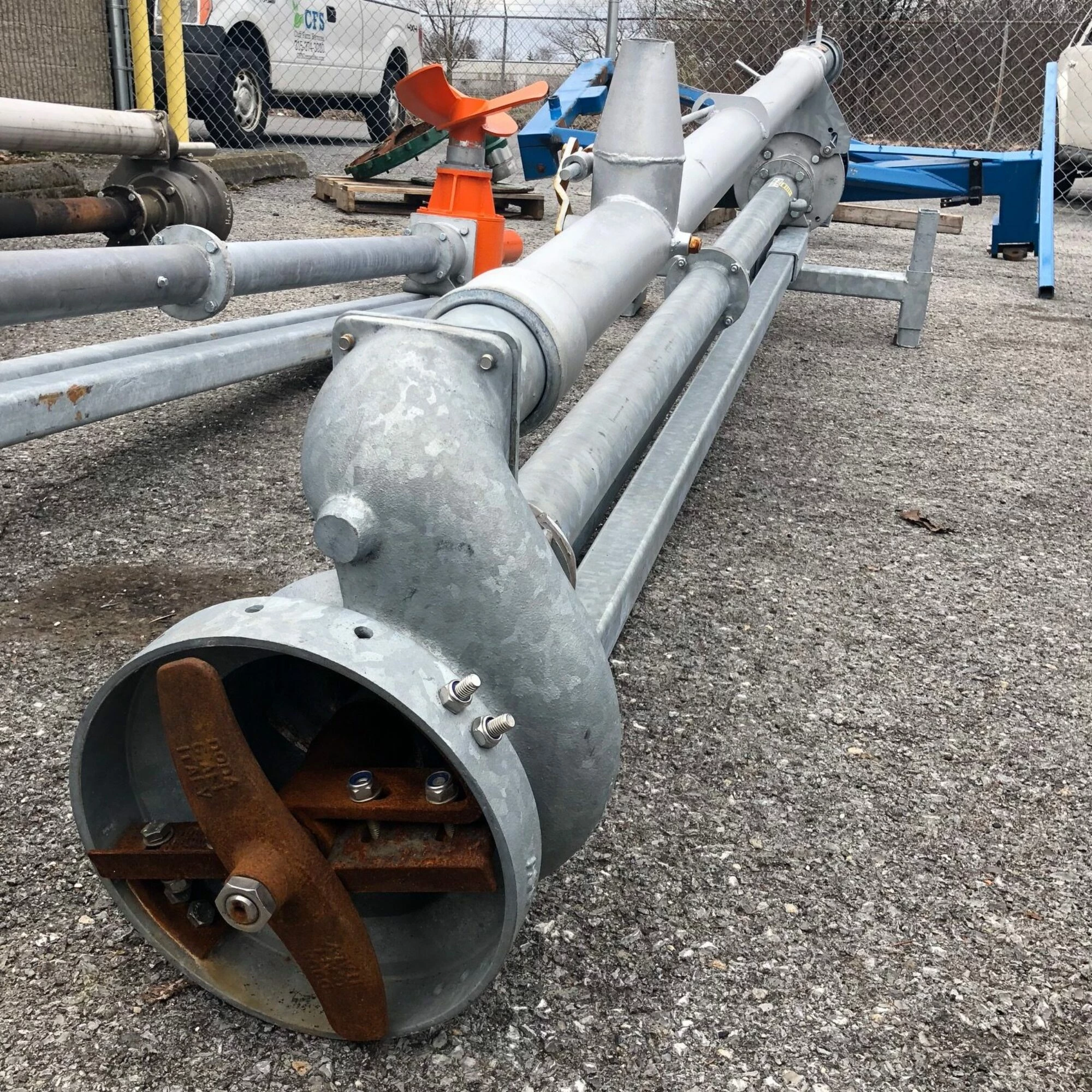

Pump housing with nodular cast iron impeller & venture design accelerates slurry movement. The patented manure chopping system from our Auburn company handles slurry with larger concentrations of bedding & solids, chopping blades made of hardened steel alloy, nodular cast iron impeller & adjustable pressure plate creates pressure.

Length: 10’
Horsepower: 10
Discharge tube: 4”

• Rotating chopping feature and adjustable pressure plate assures proper conditioning
• The unique pump housing and volute design accelerate product moving through the housing and prevent clogging
• Operates with minimal shaft deflection and increased performance of the mechanical seals and pump bearings
• Oil bath driveline with separate pump housing stainless steel shaft
• Stainless steel or nodular cast iron housing, no welded components

SOLD!

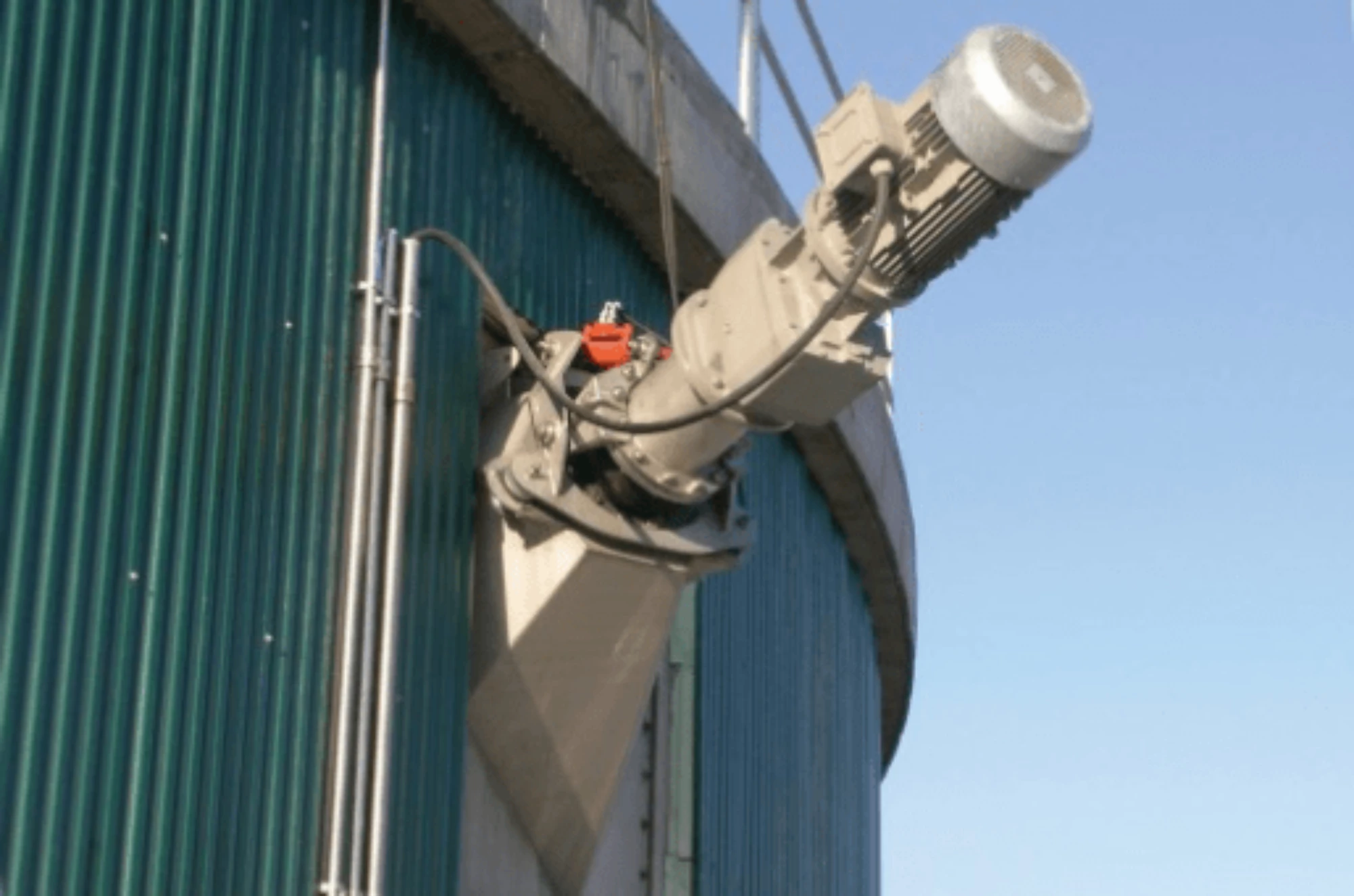

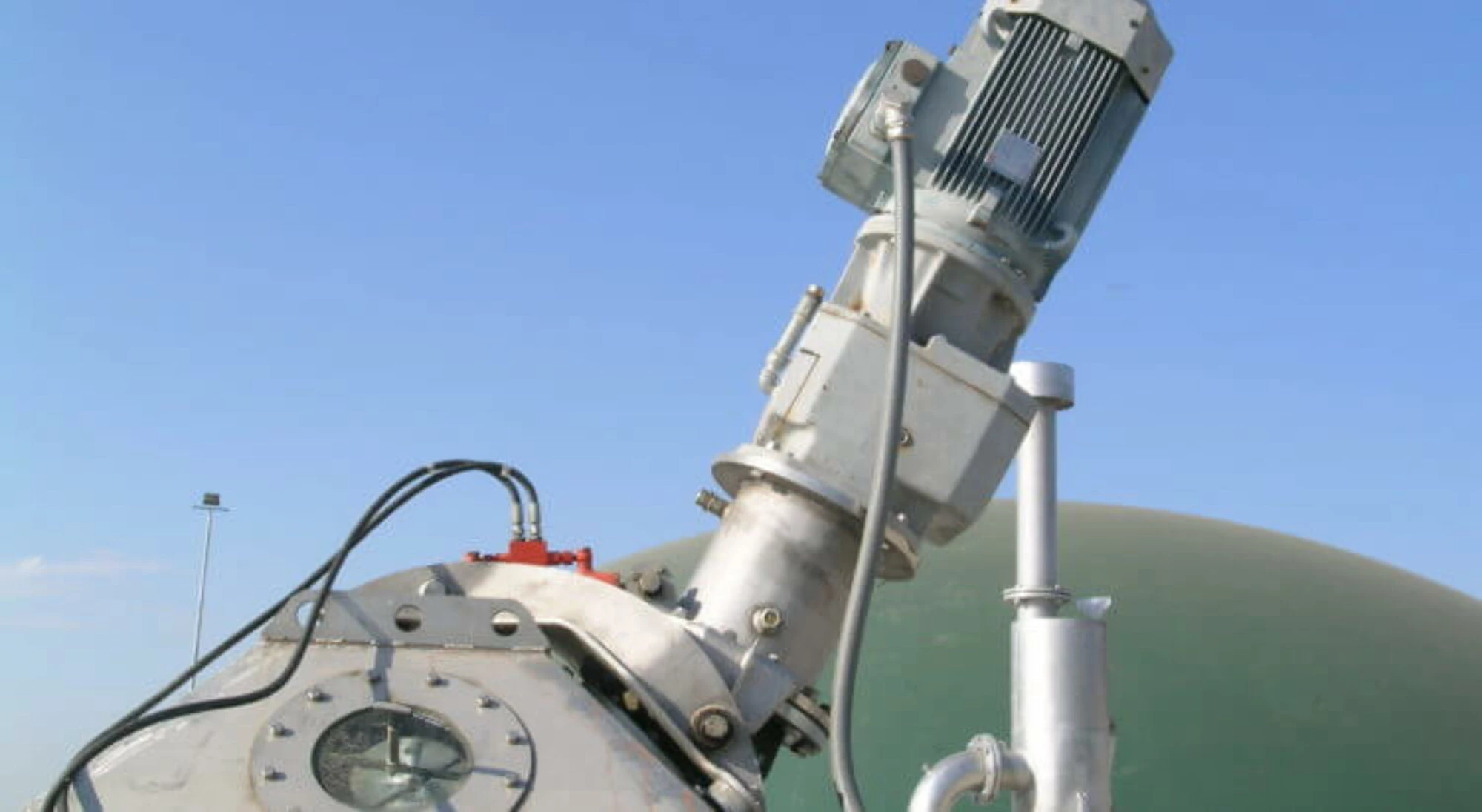

• Stainless steel construction with an oil bath driveline
• 3 blade propeller with optimized profile which allows for greater mixing power
• BG80 and BG 500 models powered by an electric motor with a reduction gear to rotate at either 80 or 500 RPMs.
• Roof or wall frame mounting
• Mixing arm is engineered to swing, up and down, left and right; to fit customized mixing effects

• Available in a variety of sizes
• Patented Doda chopping system
• Higher pressure output
• PTO or Electric drive
• Also available in vertical mount

• Patented Doda chopping system
• 3”,4”,5”,6”, and 8” pumps
• PTO, hydraulic and electric drive options

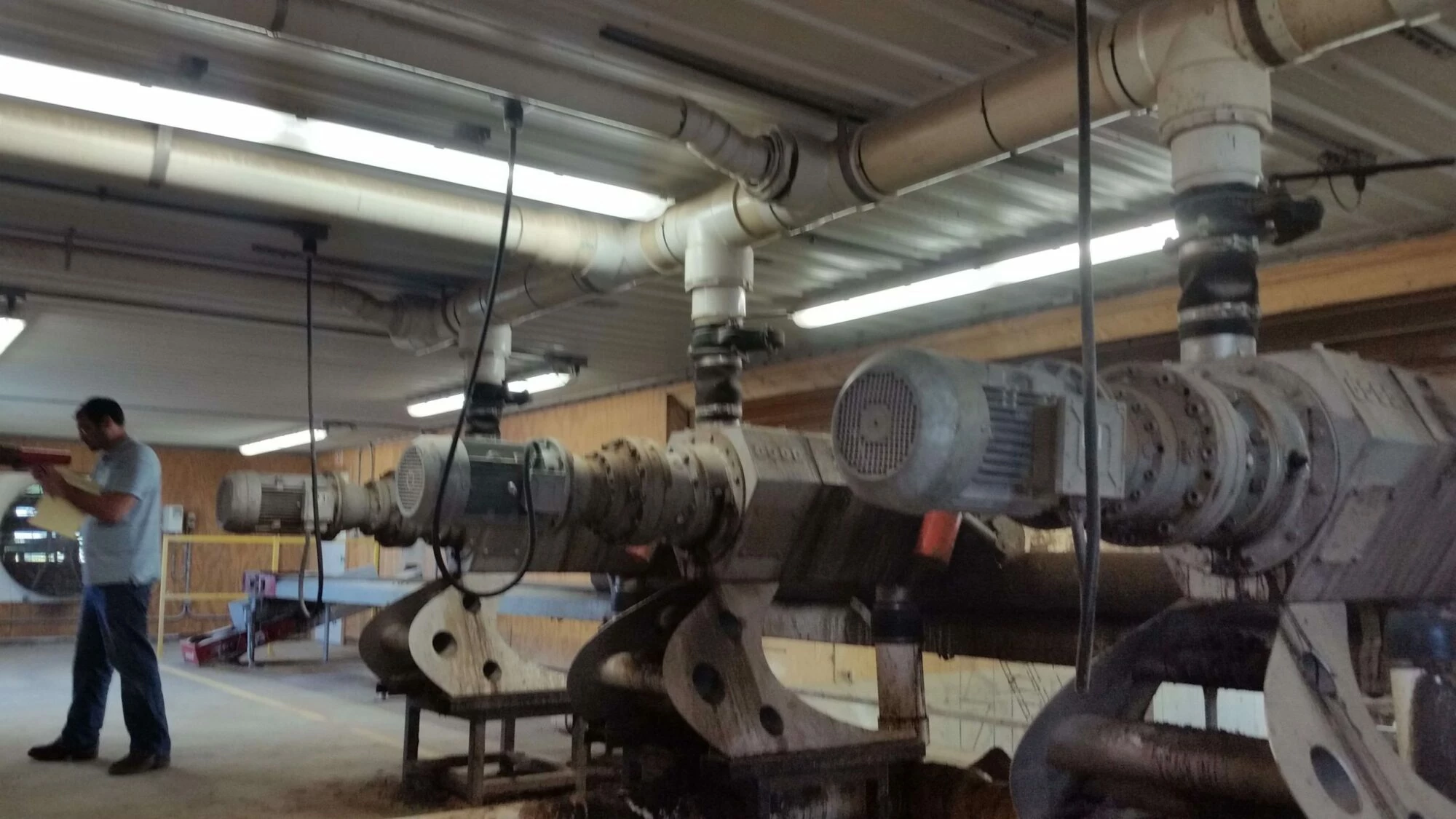

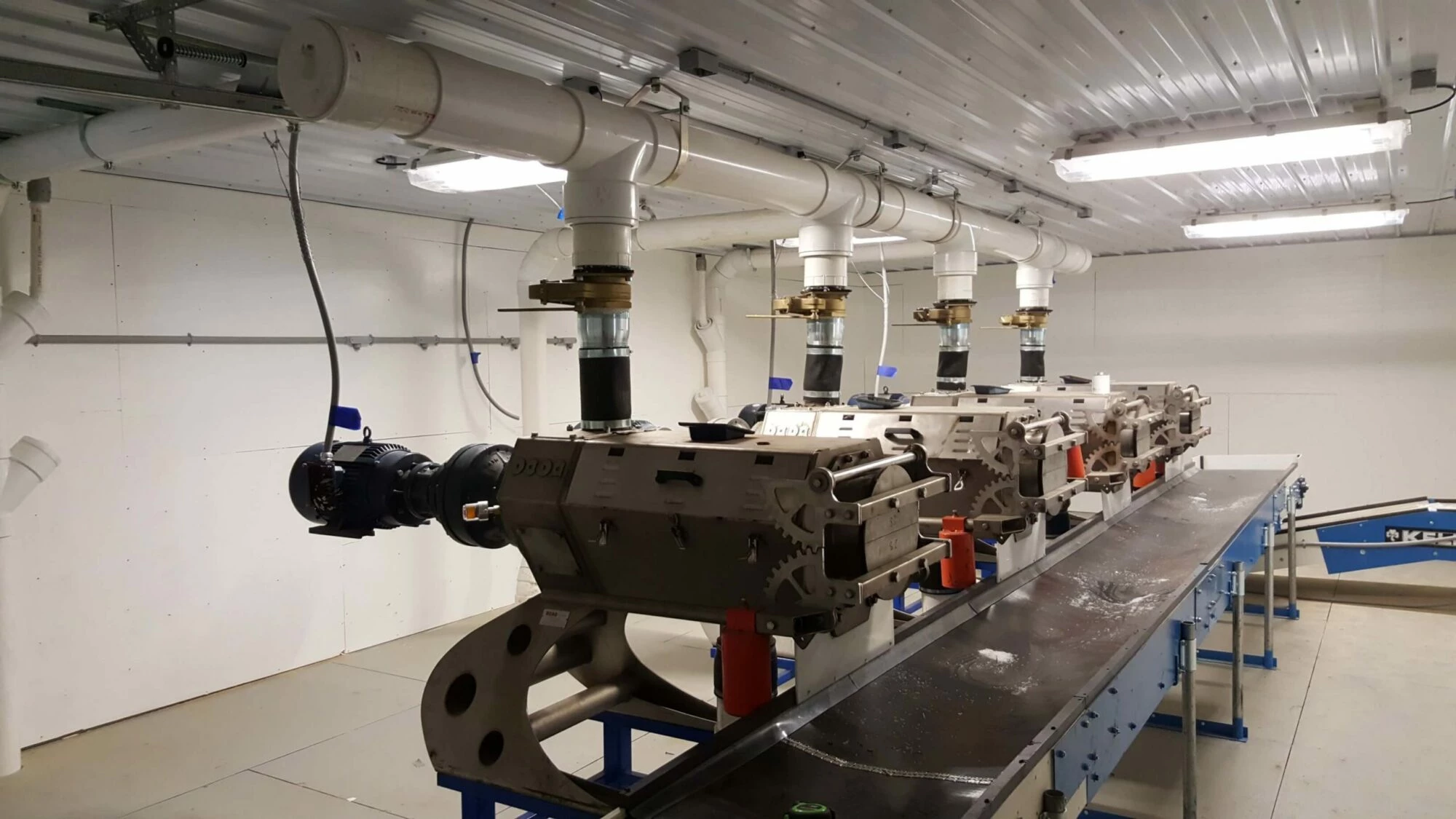

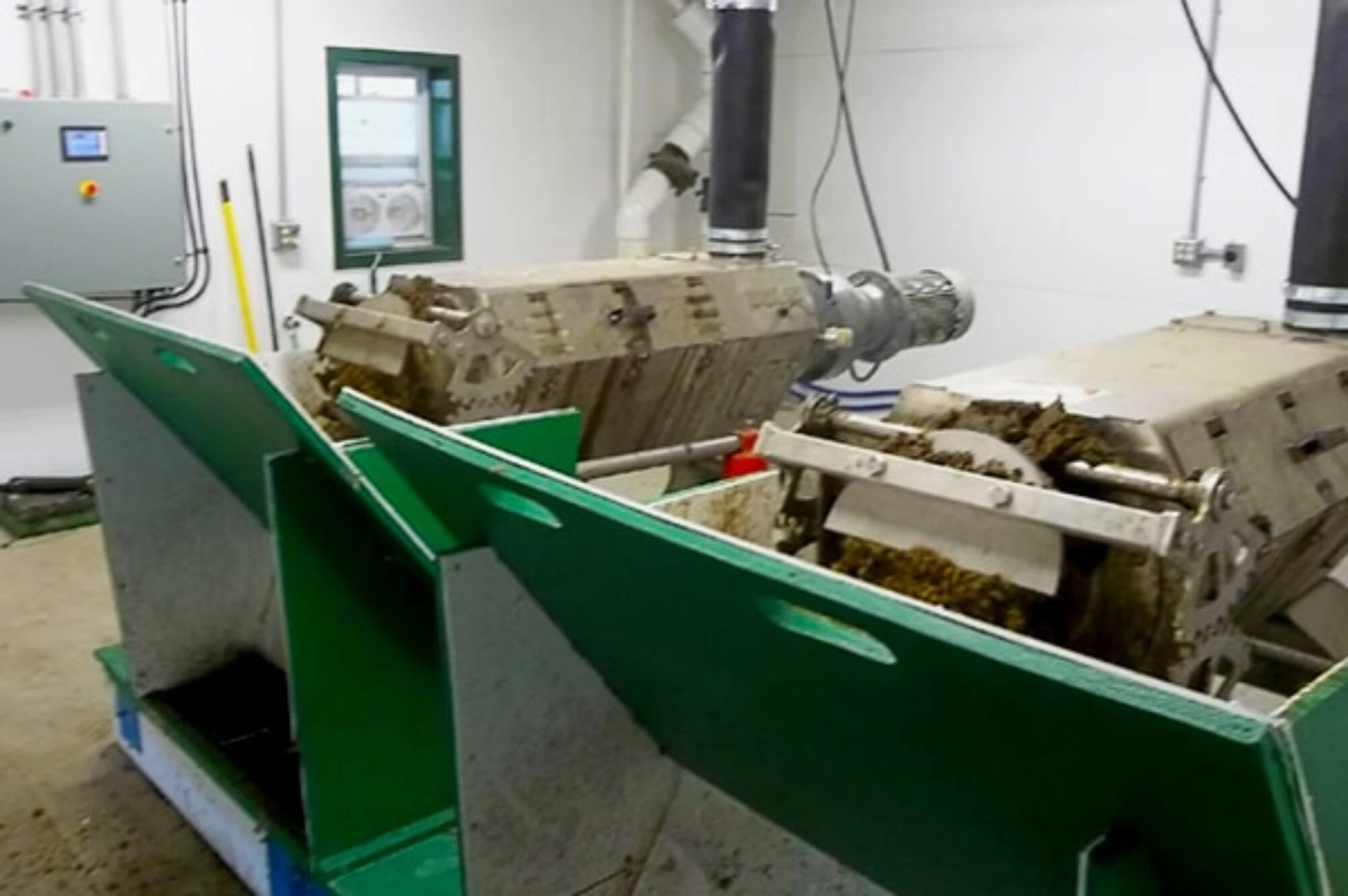

• Stainless steel construction with user-friendly side doors to inspect inside of machine
• 8mm thick loading chamber to absorb additional torque
• Oversized planetary drive with automatic greasers
• Additional weights for added squeezing pressure
• Stainless Cast, and Stainless Steel Cast Fat augers available
• Heavy-duty wedge wire screens for exceptional separation available at .5mm, .75mm, or 1mm widths
• Cantilever arms with moveable weights to adjust solids dryness
• Chopper knives (7) destroy foreign items trying to enter unit
• Tungsten-Carbide seal system and warning to keep weep hole assures no liquid contamination of planetary drive
