Mainline Hoses

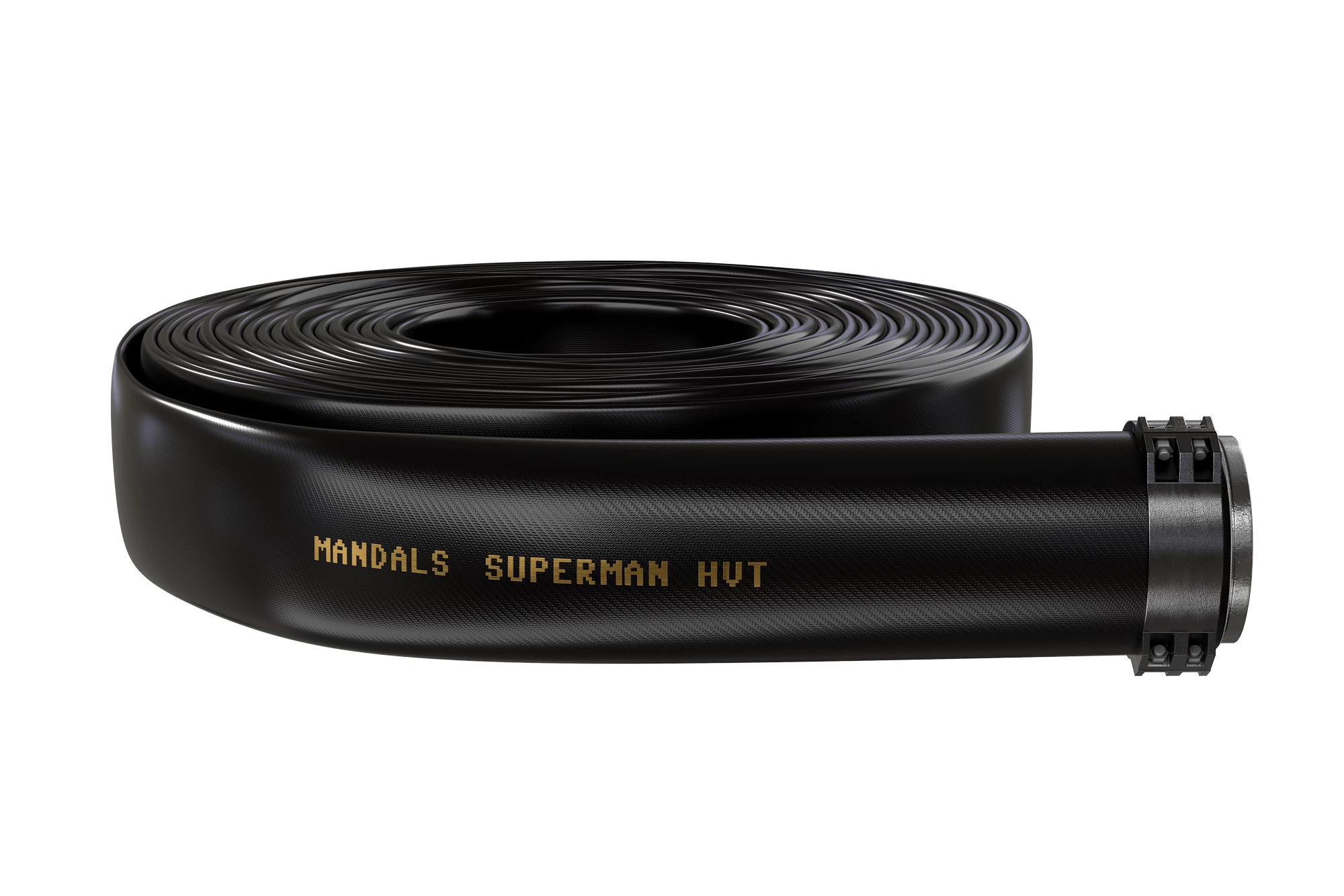

Mandals Superman HVT Mainline / Supply Hose
Design
Thermoplastic polyether based polyurethane (TPU)
State of the art “through the weave” extrusion technology.
Heavily reinforced and stabilized weave, using high tenacity polyester filament yarns.
Excellent adhesion between cover/lining and the weave.
Advantages
Full diameter recovery after pressure release.
Excellent hydrolysis and fungus resistance.
Resistance to a wide range of chemicals.
Temperature range -50 to 75 ºC (pure water)
Excellent UV, Ozone and weathering resistance.
Features
Lightweight and easy to deploy
Ultimate abrasion and puncture resistance
High diameter and extension stability
Minimum snaking of pressurized hose
Available in 660' lengths or cut lengths (subject to availability).
Nitrile Rubber Mainline also available upon request.
Mandals Superman HVT
Pressure: 250 psi
Burst: 650 psi
End Tensile Strength: 44,000 lbs.
Wall Thickness: 0.15"
Dry Weight: 1.34 lbs./ft.
Mandals Superman HVT
Pressure: 200 psi
Burst: 610 psi
End Tensile Strength: 81,500 lbs.
Wall Thickness: 0.17"
Dry Weight: 2.15 lbs./ft.
Mandals Superman HVT
Pressure: 200 psi
Burst: 520 psi
End Tensile Strength: 101,200 lbs.
Wall Thickness: 0.17"
Dry Weight: 2.85 lbs./ft.
